| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Coprite |
| Certification: | CE,GS |
| Model Number: | KK-S-3 |
| Minimum Order Quantity: | 1set |
| Price: | USD5-20/set |
| Packaging Details: | color box |
| Delivery Time: | 7-20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100sets/day |
| Cartridge: | Pp Cartridge | Inlet Pressure: | 8-125PSI/0.6-8.8kg/cm³ |
|---|---|---|---|
| Size: | 10 Inch | Type: | Countertop |
| Material: | Pp | Color: | Transparent |
| High Light: | drinking water purifier,residential water filters |
||

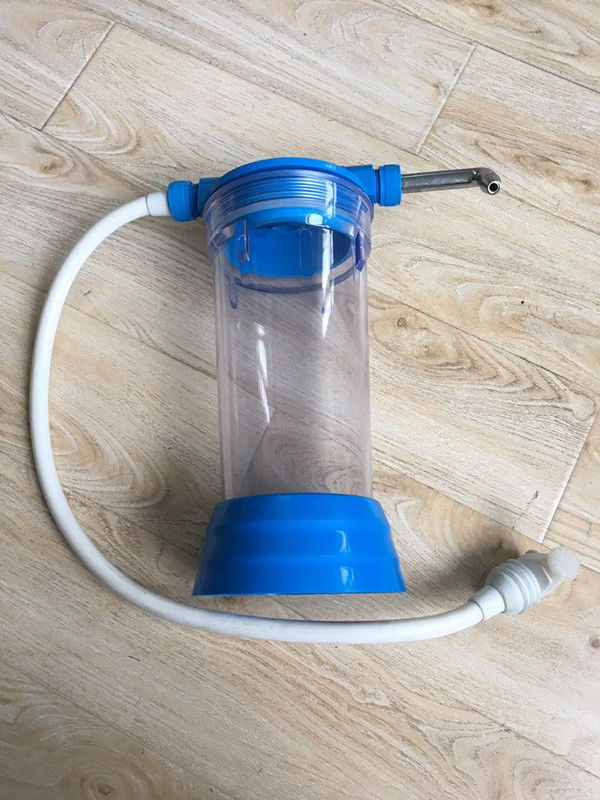

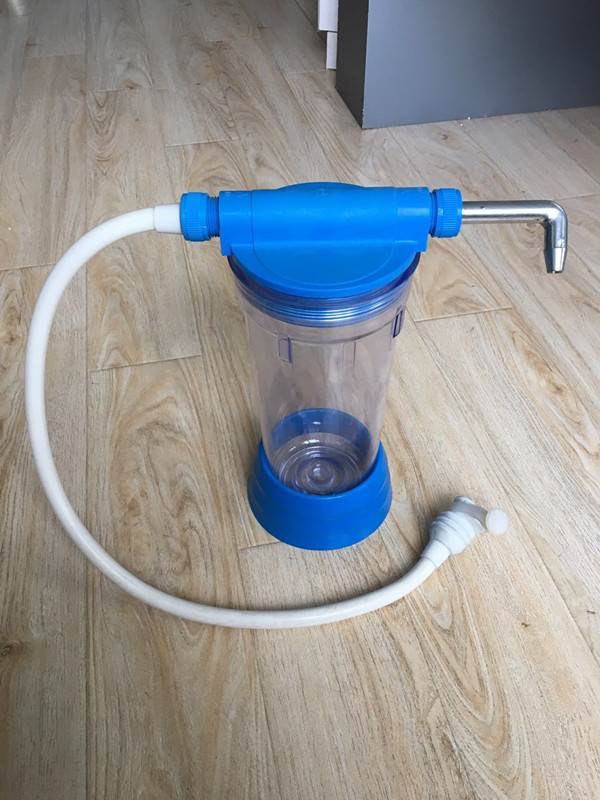

One stage countertop water filter
Sing filteration, PP/CTO/GAC cartridge
Inlet pressure: 8-125PSI, 0.6-8.8kg/m³
It's Basic function is to remove the big substance,such as solid particle,iron rust,dust etc.
For double stage,it adds the function of removing chlorine and different odor,making water clean.
For triple stage,it removes chlorine deeply,and also removes phenol, arsenic, lead, cyanide and pesticides,Ammonia and formaldehyde.
Characteristics:
. Supply safe drinking water
. Supply better taste water
. Long life household water filter
. Special filter element can be selected depending on water quality.
. Turn the tap water into drinkable immediately.
· Keep the minerals and microelements in water
· Non-electric requried
cartridge life
1st-PP,5micronremove the sand,mud,sediment,rust,and other particles.
2nd-GAC/UDF,granular activated carbonabsorbs chlorine, color, organic contaminants and bad tastes.
3rd-CTO,compression activated carboncompletely absobs chlorine, color,organic contaminants and bad tastes.
4th-UF,ultra filtration hollow fiber membraneremove the bacteria, parasites,virus,
5th-T33,post activated carbon filterimprove the water taste and keep fresh.
Function Characteristic
There are many filtration media for our system ,namely PP, activated carbon filter , granular carbon filter and so on . the function of them as follows :
!)PP filter : To remove sand,silt,solloid and any other suspension its diameter more than 5micron in water and adsorb odor,chlorine and its outgrowth in raw water
2)activated carbon filter:To adsorb odor,chlorine and its outgrowth in raw water
3) granular carbon filter: To adsorb odor,chlorine and its outgrowth in raw water
You can choose different cartridge filter to meet your requirement of filtration according to water quality situation in your local place .
Installation
| A. short three way valve |
| B. ball valve |
| C. PP sediment filter cartridge with outer diameter 60mm for 5micron |
| D. block activated carbon filter with outer diamerter 68mm for 10micron CTO) |
| E. granular activated carbon filter with outer diameter 72mm(GAC) |
| F. water faucet |
Please open the housing and then put filter cartridge into housings(the packaged film of cartridges must be removed before install), and then use the wrench tight the housing. And then connect diverter with faucet and fasten cranes
Sales points
This portable countertop water filtr is made of food grade PP , suitable for the family , hotel and restaurant use. You can choose proper filter cartridge according to the local water quality. Proper filter cartridge can remove odor, smell, color and even orgenic chemicals from tap waer. This water filter can use almost all 10" standard filter cartridge available on current market.This water filter comes with a quick easy diverter valve to install the filter without any extra fittings !
