| Place of Origin: | ZHEJIANG CHINA |
|---|---|
| Brand Name: | COPRITE |
| Certification: | CE ROHS |
| Model Number: | RO50G |
| Minimum Order Quantity: | 1 UNIT |
| Price: | USD51 |
| Packaging Details: | MASTER CARTON |
| Delivery Time: | 15DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 700 UNIT PER DAY |
| PACKAGE: | COLOR BOX | BOX SIZE: | 41*35*58 |
|---|---|---|---|
| 20FT: | 380 UNIT | 40HQ: | 1020 UNIT |
| PH: | 7-8 | Out Water PPM: | 3-10 |
| Purication Type: | Revers Osmosis | Standard Sink Top Faucet: | Yes |
DESCRIPTION

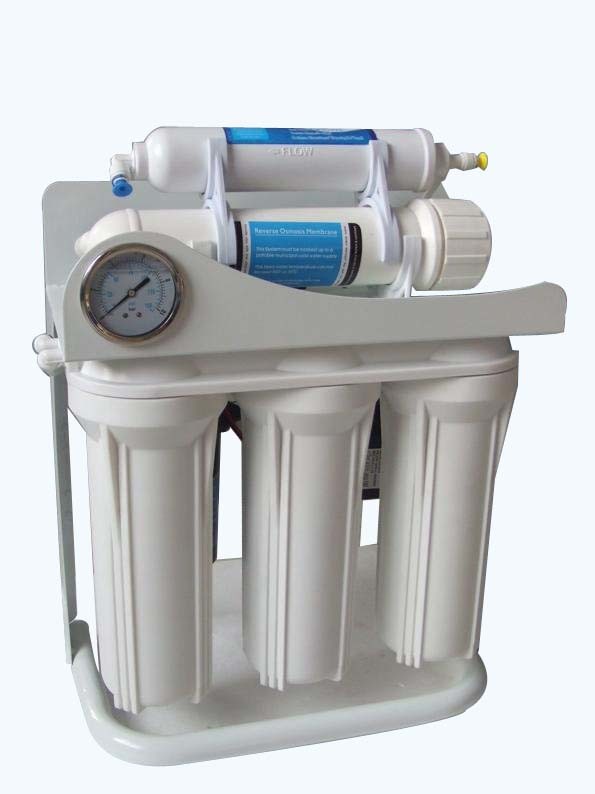

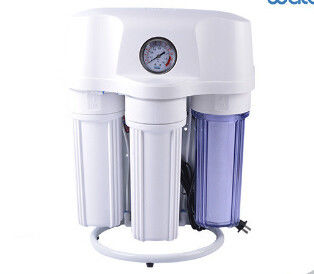

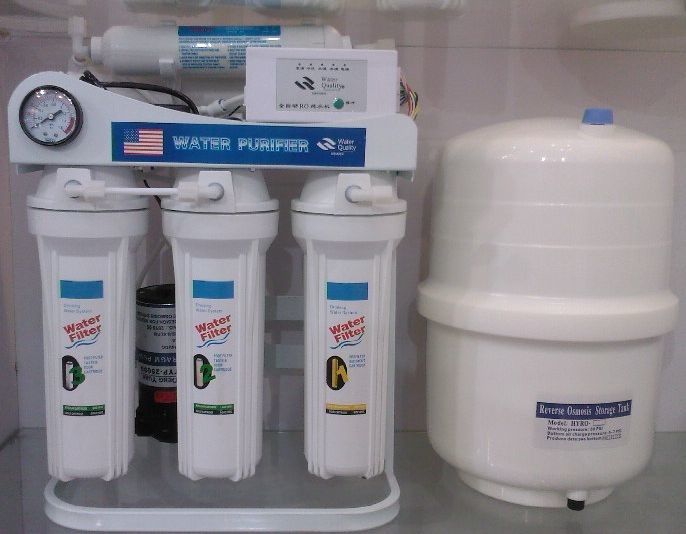

| Name | 6 stage filtration under sink ro water purifier |
| Model No | KK-RO50G-D |
| 1st stage | PP filter cartridge |
| 2nd stage | UDF filter cartridge |
| 3rd stage | CTO filter cartridge |
| 4th stage | RO membrane |
| 5th stage | Post carbon inline filter cartridge |
| 6th stage | UV LAMP |
| Purication type | Revers Osmosis |
| Color | white |
| Microcomputer control | NO |
| Booster pump | 50G pump |
| Standard sink top faucet | YES |
| Quick fittings + Food grade tube | YES |
| Instruction manual English version | YES |
| Standard parts | YES |
| Tank size | 3.2G |
100% remove chlorine
100% remove bateria
100% remove heavy metel
get pure water
and get alkaline water PH 8
| Stage | Description | Component Item No. | Replace time | Function |
| 1st | 5um pp Spun Fiber | PP-10” | 2-3months | Remove the particles,dust,mud etc. |
| 2nd | Granular Carbon Filter | GAC-10”(UDF-10) | 4-6month | Remove the chlorine,organics,odor,smell turbidity etc. |
| 3rd | Block Carbon Filter | CTO-10” | 4-6months | Remove the chlorine,odor,smell and suspending particles. |
| 4th | RO membrane | CSM or FCS or FILMTEC | 1-2yesrs | Remove the bacteria,heavy metal,salt,bad mineral substance and other dissolved matter and chemical drug in the running water |
| 5th | Post inline Carbon Filter | T-33 | 1year | Adjust the taste. |
| 6th | UFmembrane | UF-10 | 1-2years | Concentrates particles,collolds and separates them from raw water. |
| 7 TH | Uv light | 6W | 1-2years | Kill bacteria viruses,mocro-organisms in water |
1.Warning
1)Before the installation, please read the installation instructions carefully.
2)Don’t filter hot water above 40℃ and cold water below 5 ℃. Don’t put the system and pipeline close to high temperature .
3)Don’t make the pipeline bended. To increase service life of your system, the machine need to put additional stage in the place with poor water quality.
4)Open the inlet switch until the drain from faucet flows out in order to increase lifetime of cartridge filter .
5)Please contact distributors in local place or service center of our company ,once you have any questions or give me some advice .
Product Introduction --------------------------------------------------
1st Stage --- PP sediment filter, 5 micron, it can remove the particles, sands, and other impurities.
2nd Stage --- Granular activated carbon filter, GAC/UDF, it can adsorb the chlorine in the tap water, also remove the odor, smell, and bad taste.
3rd Stage --- CTO cartridge, it can further adsorb more tiny organic substance, odor and bad taste.
4th Stage --- UF membrane, 0.01 micron, it can remove the bacterium and substance.
5th Stage --- Energy filter cartrige, alkaline balls, king of chlorine, mineral stones, it contains the trace elements which good for human body, it has strong adsorbtion ability.
6th Stage --- T33 Post carbon filter, it can improve the water taste.
Product Parameter -----------------------------------------------------
| Configuration | PP+UDF+CTO+UF+BIO+T33 |
| Ambient temperature | 2-45°C |
| Inlet water pressure | 0.1-0.45Mpa |
| Flow rate | 3.8L/m 2L/min |
| Packing dimension | 420x170x410mm |
| Applicable water quality | Municipal tap water |
