|Size:||10 Inch||Description:||Single "O" Ring Housing|
|Max Working Pressure:||125PSI||Failure Test Pressure:||360PSI|
Plastic Water Filter Housing,
water filtration Housing

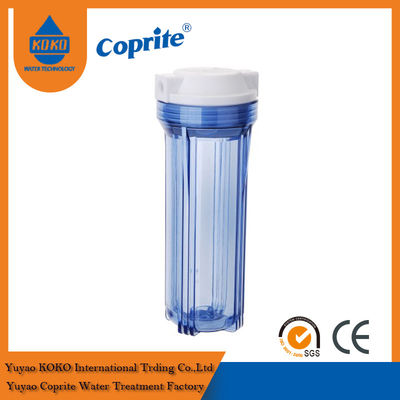

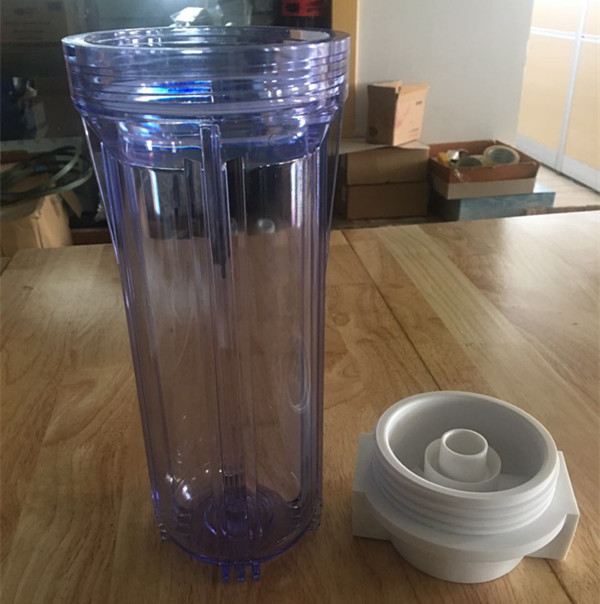

10 inch Water Filter Housing with Double "O" Ring Water Filter Housing
|Product||10 inch filter housing|
|color||white and transparent|
|inlet&out port size||1/4" 1/2'' 1''|
|port||plastic or copper
Features & Benefits
This plastic filter housing is usually used with sediment filter cartridges and activated carbon filters in the prefiltration process of drinking water plant, softener systems, household water, etc.
A. MAX.Pressure:8 Bar (115psi)
B. Failure test pressure:30 Bar (435psi)
C. Cycle test pressure:0-115psi,100000cycles
D. Recommended pressure:<6 Bar (88psi),25℃
F. Flow rate and pressure loss depend on filter elements type
1.Removes Dirt, Sand, and Silt from Your Water Supply
The Lanlang Filter Housing makes sure your family has a clean,fresh water supply throughout the house.This filtration system works to reduce dirt,sand and silt buildup in plumbing lines.Your kitchen,laundry room,bathroom and outdoor water comes out clean and fresh to help keep your family healthy.
2.Inlet/Outlet for Easy Installation
A 3/4”inch inlet and outlet allows you to quickly install the filter on your main,cold water line.The water filter(sold separately) will remain safe and secure inside the opaque housing.For further convenience,the dynamically sealing,self cleaning Oring around the housing protects against leaks and clogging,letting your filter work without damaging the cartridge.
3.GFPP Material for High Quality Assurance
Compared with other PP material filter housing,We add 20%GFPP(Glass Fiber Polypropylene) material to producing the collector and housing to improve the heat resistance and strength.Also we have improved all the other part of product for high quality assurance.
4.Prolongs the Lives of Your Water-Using Appliances
Humans aren't the only ones who benefit from clean water.machines also run more smoothly and longer,when the water they take in is fresh and dirt free.Because the Water Filter Housing limits the amount of dirt and grime introduced into your appliances,your home's water using devices are likely to last longer and perform at their best.
• made of AS and PPfood grade materail NO odor more luster and durable
• ideal for a widerange of applications
• available with clear styrene acrylonitrile and o[aque polypropylene
• thicker walls for increased strength
• available port:1/4".1/2" 3/4"1"
• filter cartridge is optional
Water filters remove undesirable particles, chemicals, and microorganisms from water by means of a semipermeable barrier, adsorption, or biological processes. They are made of densely packed synthetic or natural fibers that trap suspended particles, materials that block microbes or adsorb unwanted chemicals, or substances that cause a chemical change, such as acid neutralization. For most residential, commercial, and industrial applications, water filters are manufactured in the form of replaceable cartridges that fit inside permanent housings. Filtration systems typically consist of a series of two or more types of filters, each designed to remove different contaminants. The performance of filters is measured by the minimum particle size that is blocked, the percentage of particles or microorganisms that are removed, the downstream concentration of unwanted chemicals, the maximum flow rate, and the amount of water that can be filtered before the filter must be replaced. Water filters are used in a wide range of applications, including drinking water purification, swimming pools, industrial processes, and irrigation, among others.
