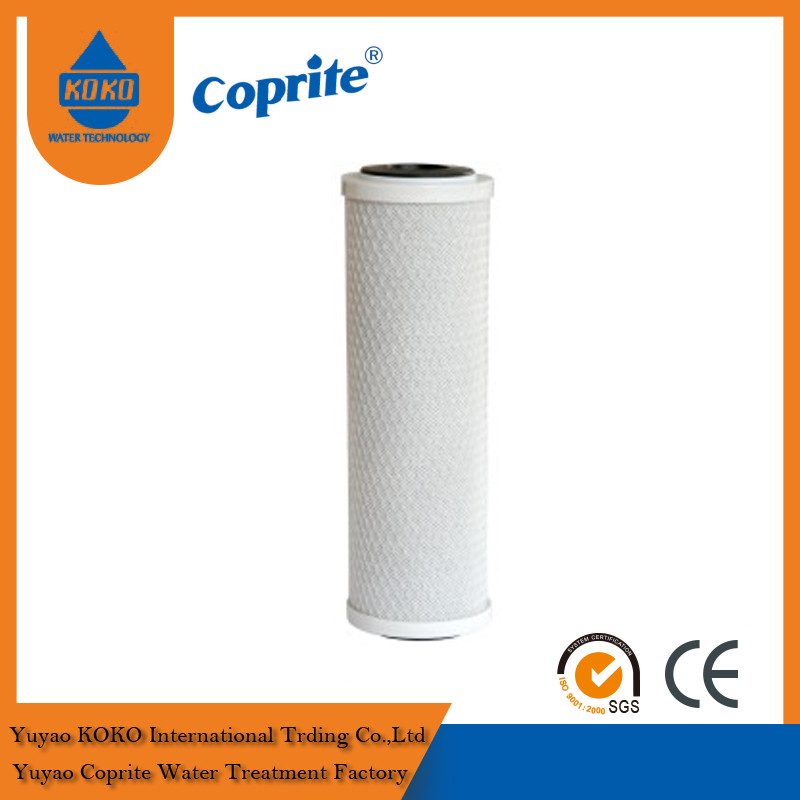

10" CTO Drinking Water Filter Cartridges / Coconut Carbon Block Filter Cartridge

Basic Infomation
Place of Origin: China
Brand Name: Coprite
Certification: CE,CB,GS,ISO9002
Model Number: CTO - 10
Minimum Order Quantity: 10pcs
Price: 0 - 5 usd/pc
Packaging Details: carton box
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs/ week
Detail Infomation
Material: Active Carbon Size: 10 Inch
Use: Household Pre-Filtration Replacement: 6 Monthes
End Cap: PP Color: Customized

Product Description

10 inch CTO Activated Carbon or Coconut Carbon Water Filter Cartridge







Material Membrane: Polyethylene
Core: Mineral AC & Coconut shell AC
O ring/Gasket: Silicone, EPDM, Buna-N
Specifications Pore size(um): 5,10 Micron
Outer Diameter(OD): 63mm,70mm,115mm(can be decided by client)
Length(inch): 5"10"20" 30"40"(can be decided by client)
Technical data Max differential pressure: 7 bar at 20°C
Recommended change out: 1-1.5bar
Max temperature: 52°C



Specifications

Filter Media: Coal carbon, Coconut carbon

Micron Rating: 5um, 10um, 20um

Inside Diameter: 28mm

Outside Diameter: 68MM /115MM

Length: 5", 10", 20", 30", 40"

Activated Carbon Filter Cartridge is extruded and shaped by activated carbon fines. The material can be mineral type or coco-nut. The function of this cartridge is the removal of chlorine, bad taste and organic. Ensuring no carbon fines release and strong adsorptivity.



Applications

• Plating

• Drinking water

• Paints, coatings and plating solutions



Material of Construction

• Filter Media: Mineral or coco-nut

• End cap : Polypropylene

• Netting: Polyethylene

• Micron Rating:5µm, 10µm



Dimensions

• Inside diameter: 28mm

• Outside diameter: 68mm or 115mm

• Length: 5", 10", 20", 30", 40"



Recommended Operating Conditions

Max. Operating Temperature: 52°C

Max. Differential Pressure: 7Bar@20°C





3. Feature and Benefit



The Activated Carbon Block Filter Cartridge is made from high density activated carbon particles and harmless adhesive. And the outside PP bonded no woven fabric can remove over 90% remaining chlorine and 95% volatility organics effectively. Its ash content is controlled to be the lowest to retain more effective micron-pores.



Features:

  • Better adsorbability.
  • Removing the chlorine. ordor and organics in the liquid or air.
  • Not releasing carbon powder.
  • Low pressure difference, stable flow.

Applications:

  • Drinking water filtration
  • Electroplate liquid filtration
  • Industrial water filtration
  • Related food industry
