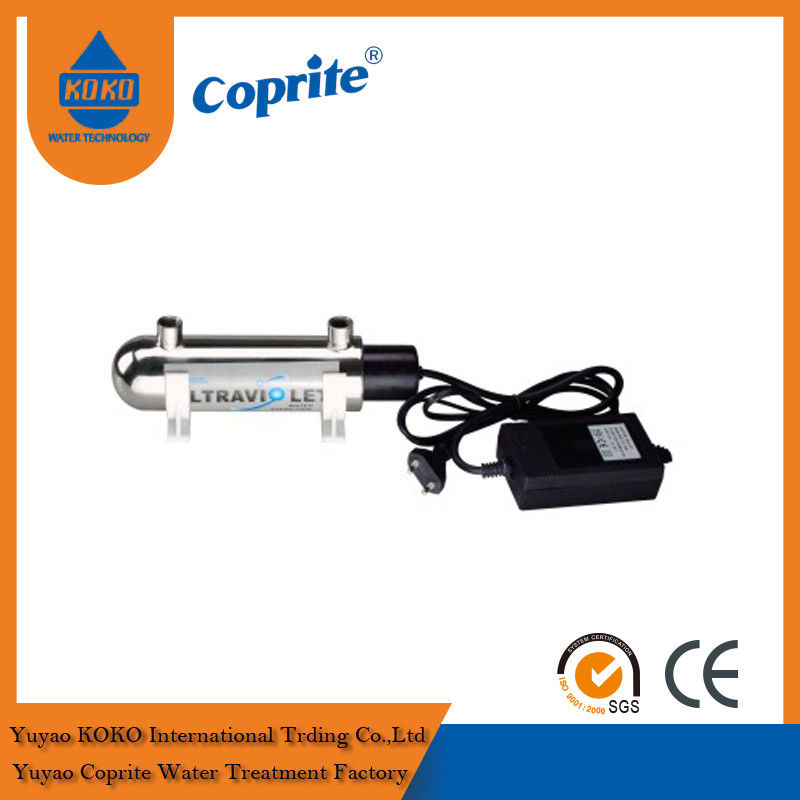

4W 0.25GPM 304 Stainless Steel Ultraviolet Water Purification System

Basic Information
Place of Origin: China
Brand Name: Coprite
Certification: GS,CB,CE,ISO9001
Model Number: KK-UV-4W
Minimum Order Quantity: 150sets
Price: 10-50 USD / SET
Packaging Details: carton box
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs / day
Detail Information
Lamp Rated Life: 8000 Hrs Type: 4W
Lamp Failure: LED Material: 304 Stainless Steel
Voltage: 110/220v 50/60 Hz Overall Dimension: φ51*200mm
High Light:

aquarium uv light sterilizer


Stainless steel uv sterilizer

Product Description

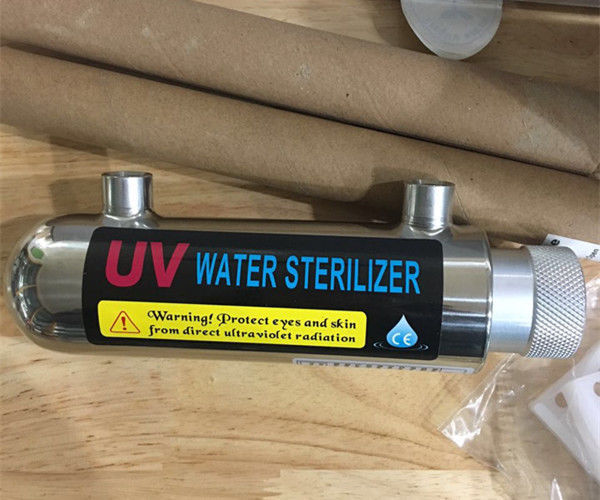

KK-UV-4W Ultraviolet Sterilizer with UV Light for Water Purifier

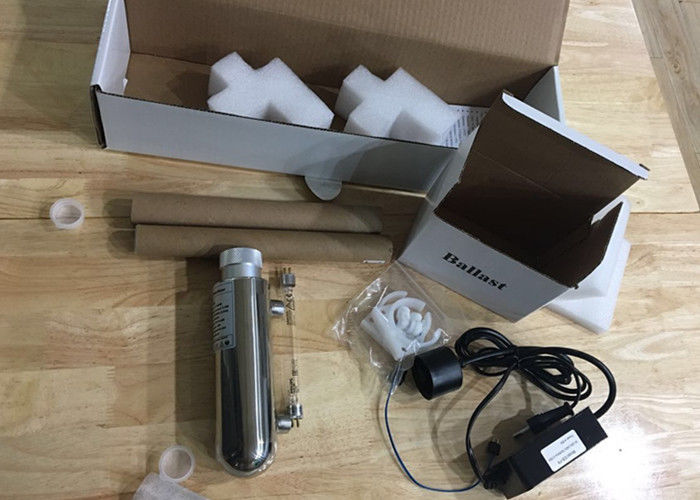

Equipment structure
1). UV lamp
2). Quartz glass casing
3). Ballast power supply
4).304 stainless steel body

pure water
0.056t/h 0.25 GPM
tap water
0.044t/h 0.25GPM
lamp rated life(hrs)
UV dosage(uW-sec/cm2)
electricity unit
Hz: 50/60
Wats: 4w
lamp failure
overall dimension(mm)
shell material(stainless)
inlet/outlet size)
T/T, western union, L/C
shipping port
Ningbo port

1) High output UV lamp
2) Polished stainless steel reactor chambers
3) Compact design, allowing for wide application
4) Simple and easy installation
5) Maximum UV output with highest-quality quartz sleeve
6) Easy maintenance
7) Ecological way to protect your water without side effects

Hot cathode electrode, warm start, the average life expectancy of up to 8000 hours; electrodes and quartz glass tube after special treatment, extended lamp life, better maintenance of UV output. There are two lamp, respectively, with an inner diameter of 22mm and 20mm tube combination of quartz jacket. High ozone lamps can produce hydroxyl in water, decomposition of organic matter, reducing the TOC.
Ultraviolet Sterilizer for Water Purification/ Over current manufacturer supply uv sterilizer sterilization equipmentUv sterilizer with stainless steel as main materials, with high purity quartz tube for casing, with high-performance quartz uv low pressure sterilization lamp, bactericidal power, long life, stable and reliable running, its sterilization efficiency 99% or higher, imported lamp life 8000 hours or more, has been widely used in medicine, food, beverages, life, electronics and other fields.
Sterilization is applied to water, domestic water, ionized water, water, medical and other bodies of water; water treatment equipment; photocatalyst photocatalytic degradation of organic matter in the wastewater, wastewater treatment.
With UV germicidal lamp; bacteria in water according to Athenagoras, Basra bacteria, Salmonella, and so the whole kill, from the heart of bacteria in water, but no longer a threat to our lives ... can sneak into the center of a 360-degree water sterilization efficacy equal to three times the water germicidal lamp.
Paul can eliminate algae in water, the effect is significant, and easy to use. Practical in: various sizes fishing filtration, water treatment, large and small pools, swimming pool, spa and other sterilization efficiency up to 99% -99.99%.
C-band ultraviolet lists several common bacteria and viruses for sterilization time is generally within just one second. The traditional chlorine, ozone and other chemical disinfection methods to achieve the effect of ultraviolet disinfection generally requires 20-1 minutes of time.
Precautions and instructions for use
1). Ultraviolet radiation can not be directly to the body's skin;
2). Ultraviolet radiation on the working environment temperature and humidity have certain requirements: more than 20 ℃, the radiation intensity is more stable; between 5 ~ 20 ℃, with the temperature rise in the intensity of radiation; relative humidity below 60%, sterilization ability , The humidity increased to 70%, the sensitivity of microorganisms to reduce the UV, humidity increased to 90%, the bactericidal decline of 30% to 40%.
3). When the water is disinfected, the water layer thickness should be less than 2cm, the water flow out of time to accept 90000 UW.S / cm2 or more radiation dose to achieve effective disinfection of water.
4). UV lamp and casing surface dust and oil, it will hinder the ultraviolet light through, which should often (usually once a week) to alcohol, acetone, ammonia wipe.
5). Lamp start, heating to a steady state takes a few minutes, the higher terminal voltage. Close immediately if re-opened, often more difficult to start, and easy to damage the lamp and reduce lamp life, it is generally not appropriate to start.
4W 0.25GPM 304 Stainless Steel Ultraviolet Water Purification System 0
